Product description

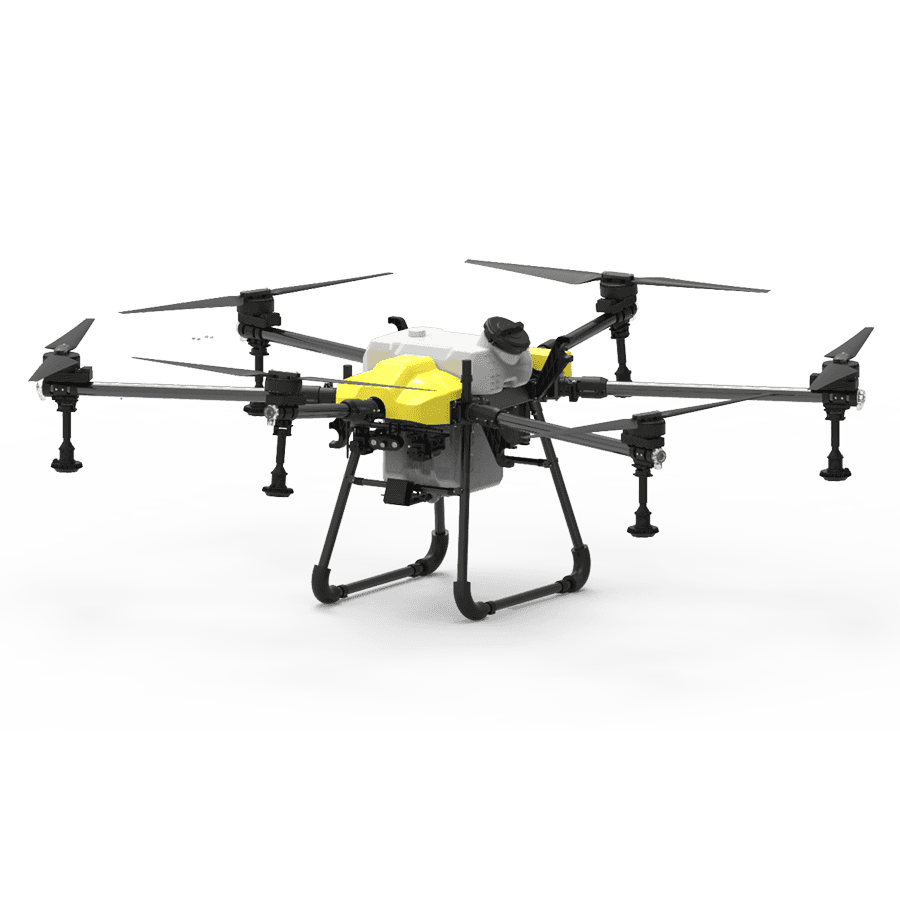

F30 brand new innovative structure design, integrated modular body, super compatibility, equipped with quick-plug water tank battery design, using left and right folded front and rear folded six rotor design, front dual water pump splitting quick release module, equipped with obstacle avoidance radar and The ground defense radar module is expanded, the front FPV provides clear image feedback from the first angle of view, and the 36-inch super-large propeller provides strong power. Maximum payload volume 30L,Switchable broadcasting mode.
- Product wheelbase: 2150mm
- Product size: 2030*1915*770mm (expanded); 1145*760*905mm (folded); The overall size of the spreader: 430*304*703mm
- Planter size: 276*276*163mm
- Product weight: 2.1kg (30L water tank weight); 1.94kg (weight of 40L spreading box); 1.60kg (spreader weight)); 13.98kg (frame weight); 27kg (the highest configuration, without battery); 36.5 (including battery weight); 66.5kg (full load, take-off weight)
- Arm size: 37*40mm/42*45mm/47*50mm
- Medicine box volume: 30L
- Spreading box volume: 40L
- Spray width: 8~12 meters
- Operation efficiency: 120 mu/hour
- Flight control: K++V2/V9 AG/ PALADIN
- Remote control: H12/T12/MK15
- Power system: X9plus 100kv (motor); 120A (ESC); 36 inches (propeller)
- Spraying system: 5L water pump (voltage: DC44-60.9V)
- Pressure Sprinkler/Centrifugal Sprinkler Kit
- Battery: 14S 28000mAh
- Spreading system: 360° large flow spreader
- Hover time: 23 minutes (no-load hover 14S 28000mAh) 8 minutes (full-load hover 14S 28000mAh)
- Spreading system: Spray width 5~10 meters
- Operating particle diameter: 0.5~6mm (Dry particle)
- Valve angle: 0~60 degrees
- Maximum speed: 1100r/min
- Maximum power: 150w
