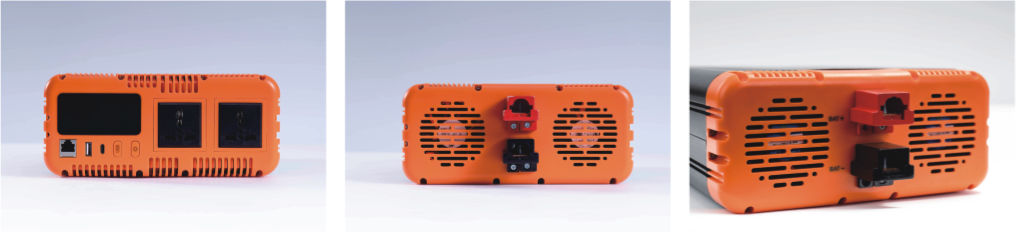

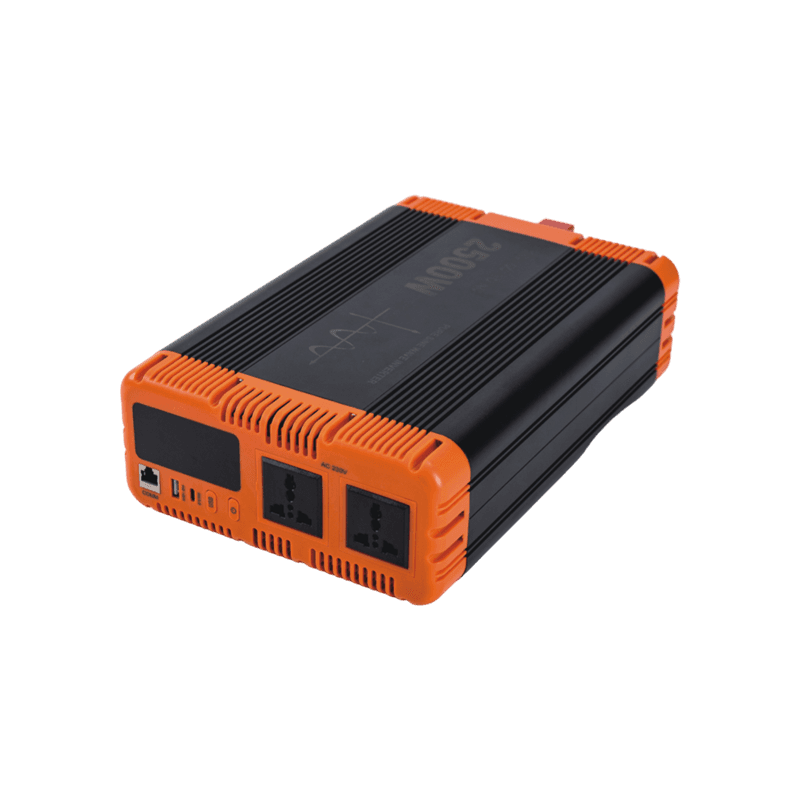

Product description
| Product model: | JD-1000W-C | JD-1500W-C | Product model: | JD-2000W-C | JD-2500W-C | |
| Product specifications: | 12VDC/1000W | 12VDC/1500W | Product specifications: | 24VDC/2000W | 24VDC/2500W | |
| Rated input voltage: | 12VDC | 12VDC | Rated input voltage: | 24VDC | 24VDC | |
| AC output voltage range: | 220V(±10%) | 220V(±10%) | AC output voltage range: | 115-230V(±10%) | 115-230V(±10%) | |
| Continuous output power: | 1000W | 1500W | Continuous output power: | 2000W | 2500W | |
| Instantaneous output load power: | 2000W(0.1~2S) | 3000W(0.1~2S) | Instantaneous output load power: | 4000W(0.1~2S) | 5000W(0.1~2S) | |
| Output overload protection: | 1000W(105~130%) | 1500W(105~130%) | Output overload protection: | 2000W(105~130%) | 2500W(105~130%) | |
| USB-A output: | QC3.018W(5V/3A、9V/2A、12V/1.5A) | USB-A output: | QC3.018W(5V/3A、9V/2A、12V/1.5A) | |||
| TYPE-C output: | PD18W(5V/3A、9V/2A、12V/1.5A) | TYPE-C output: | PD18W(5V/3A、9V/2A、12V/1.5A) | |||
| Output voltage frequency: | 50/60Hz | Output voltage frequency: | 50/60Hz | |||
| Output voltage waveform: | Pure sine wave | Output voltage waveform: | Pure sine wave | |||
| DC voltage operating range: | 11~15VDC | DC voltage operating range: | 20~30VDC | |||
| Input low voltage alarm: | 10.5VDC(±0.5V) | Input low voltage alarm: | 21VDC(±1V) | |||
| Input low voltage protection: | 10.0VDC(±0.5V) | Input low voltage protection: | 20VDC(±1V) | |||
| Input low voltage recovery: | 11.8VDC(±0.5V) | Input low voltage recovery: | 24VDC(±0.5V) | |||
| Input static current: | ≤0.8ADC | Input static current: | ≤0.6ADC | |||
| Input high voltage protection: | 16VDC | Input high voltage protection: | 32V DC | |||
| Input high voltage recovery: | 15.5VDC | Input high voltage recovery: | 31V DC | |||
| Input reverse polarity protection: | Yes | Input reverse polarity protection: | Yes | |||
| Product dimensions: | 330*230*100mm | 330*230*100mm | Product dimensions: | 385*230*100mm | 385*230*100mm | |
| Product net weight/gross weight: | 2.7kg /3.68kg | 2.6kg/3.58kg | Product net weight/gross weight: | 3.34kg /4.32kg | 3.44kg /4.468kg | |
| Number of packages: | 1pcs | 1pcs | Number of packages: | 1pcs | 1pcs | |
| Package dimensions: | 377X280X155mm | 377X280X155mm | Package dimensions: | 472X310X155mm | 472X310X155mm | |
