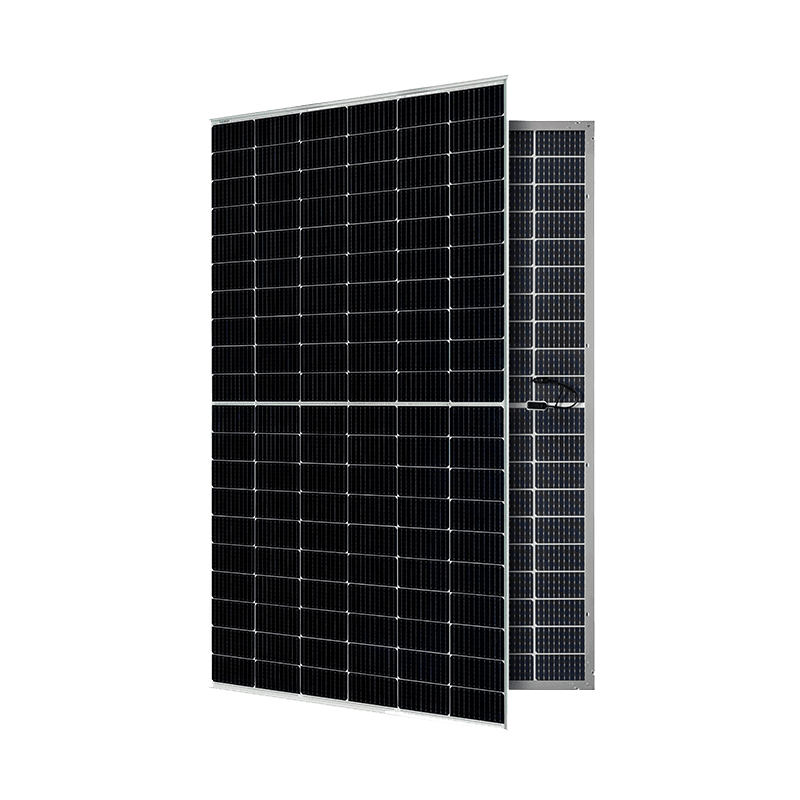

N series
N Series relies on TOPCon technology, maximum efficiency reaches 23.18%. N-type cell is zero LID can increase power generation. The degradation is only 1% in the first year and 0.4% each subsequent year. Excellent power generation performance creates higher revenue for customers.
Product description
Features and Benefits
- Topcon technology, higher power generation.
- Even cloudy or foggy days, better weak illumination response.
- Better temperature coefficient, more power generation.
- Multiple weather, resistance tests, wider applicability.
- High density packaging, improving energy density.
- Zero LID, increase power generation.
- Higher power output, lower bos cost.
Trustworthy Quality
- 100% Cells Sorting
Ensure Color and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.
- 100% Inspection
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.
- 100% EL Testing
Before and Following Lamination. Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
- 100% Optional Testing
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.
Production Information
| N-type Modules | ||||
| Module Type | Power Range | Maximum Efficiency | Dimension | |
| 182 N-type Monofacial / Bifacial Module | 425W - 445W | 22.79% | 1722x1134x30mm | |
| 475W - 495W | 22.87% | 1909x1134x30mm | ||
| 525W - 545W | 22.95% | 2094x1134x30mm | ||
| 575W - 595W | 23.03% | 2278x1134x30mm | ||
| 625W - 640W (Bifacial) | 22.90% | 2278x1134x30mm | ||
| 210 N-type Bifacial Module | 560W - 580W | 22.71% | 1960x1303x30mm | |
| 620W - 640W | 22.61% | 2172x1303x30mm | ||
| 700W - 720W | 23.18% | 2384x1303x30mm | ||
| 210R N-type Monofacial / Bifacial Module | 490W - 510W | 22.95% | 1960x1134x35/30mm | |
| 545W - 565W | 22.94% | 2172x1134x35/30mm | ||
| 595W - 615W | 22.77% | 2384x1134x35/30mm | ||
