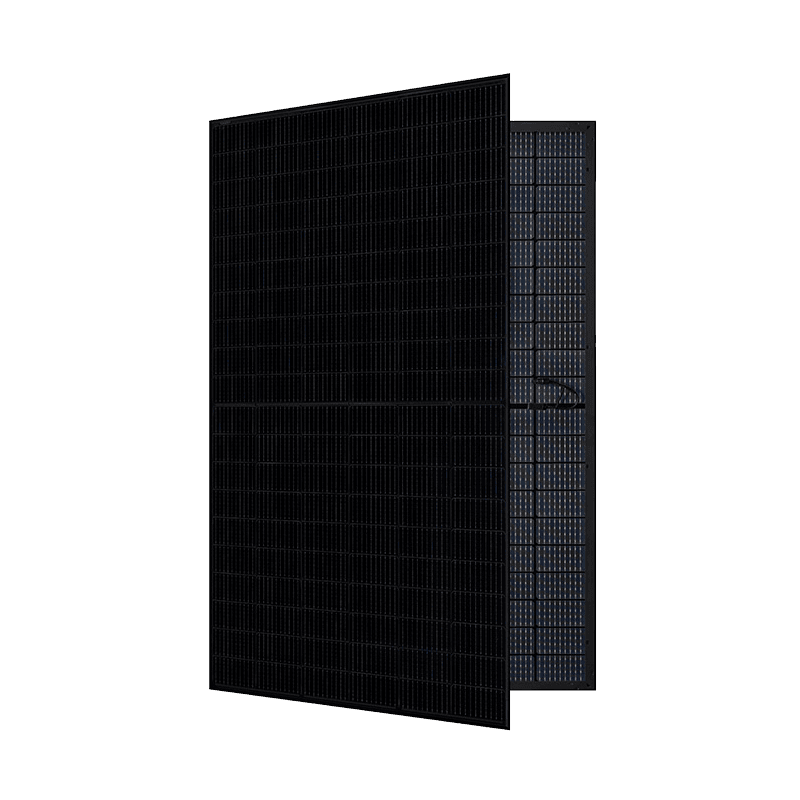

Product description
Features and Benefits
- TOPCon Technology Higher Power Generation
- Even Cloudy or Foggy Days Better Weak Illumination Response
- Better Temperature Coefficient More Power Generation
- Multiple Weather Resistance Tests Wider Applicability
- Highly-resistant Black Crystal Material Modernity to Buildings
- Zero LID Increase Power Generation
- Higher Power Output Lower BOS Cost
- Double-sided Generation Powerfully Energy Boost
Trustworthy Quality
- 100% Cells Sorting
Ensure Color and Power Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.
- 100% Inspection
Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.
- 100% EL Testing
Before and Following Lamination. Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and panel.
- 100% Optional Testing
Ensure 3% Positive Power Tolerance. Comprehensive QC information management system with barcode ID. Quality traceable system in place to allow quality data flow constantly.
Production Information
| Pure Black Modules | ||||
| Module Type | Power Range | Maximum Efficiency | Dimension | |
| 182 Pure Black N-type Monofacial Module | 415W - 435W | 22.28% | 1722x1134x30mm | |
| 465W - 485W | 22.40% | 1909x1134x30mm | ||
| 515W - 535W | 22.53% | 2094x1134x30mm | ||
| 565W - 585W | 22.65% | 2278x1134x30mm | ||
| 182 Pure Black N-type Bifacial Module | 420W - 435W | 22.28% | 1722x1134x30mm | |
| 470W - 485W | 22.40% | 1909x1134x30mm | ||
| 520W - 535W | 22.53% | 2094x1134x30mm | ||
| 570W - 585W | 22.65% | 2278x1134x30mm | ||
| 620W - 635W | 22.72% | 2465x1134x30mm | ||
| 182 Pure Black N-type Bifacial Single Glass Module | 415W - 435W | 22.28% | 1722x1134x30mm | |
| 182 Pure Black P-type Monofacial Module | 400W - 410W | 21.00% | 1722x1134x30mm | |
| 445W - 455W | 21.02% | 1909x1134x30mm | ||
| 490W - 500W | 21.06% | 2094x1134x30mm | ||
| 535W - 545W | 21.10% | 2278x1134x30mm | ||
